Structural engineering software assists design on Bayscape building

Subscribe

- Never miss a story with notifications

- Gain full access to our premium content

- Browse free from any location or device.

Media Packs

Expand Your Reach With Our Customized Solutions Empowering Your Campaigns To Maximize Your Reach & Drive Real Results!

– Access the Media Pack Now

– Book a Conference Call

– Leave Message for Us to Get Back

Related stories

How Construction Firms Can Leverage Social Media for Talent Recruitment

Finding the right workers has always been a challenge...

Guard Rail Kits: Key Components and Their Functions

Do you need to understand the essential elements of...

Home Design Choices That Support You Through Every Stage of Life

Your home should do more than just look nice...

Who are the Best Transformer Rental Companies in Colorado?

​When securing reliable transformer rental services in Colorado, selecting...

SCIA Engineer’s structural engineering software was used to create the full FE model and generate the analysis output used in all aspects of the design on the Bayscape building in Cardiff Bay.

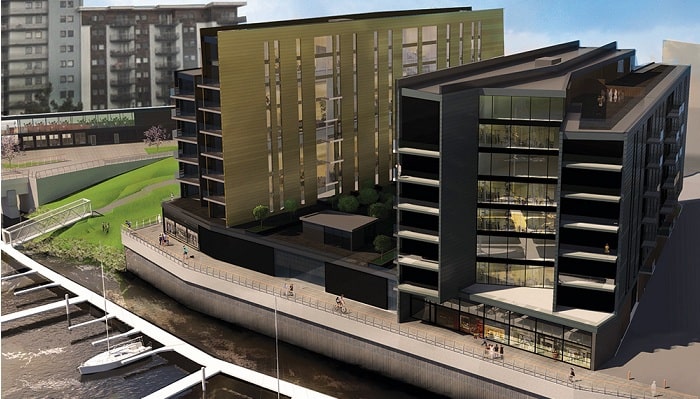

The Bayscape building is composed of two apartment blocks which are 9 and 10-storeys high, repectively. These two blocks are then joined by a podium slab that serves as an open space for relaxation with a splendid view of the adjacent marina.

The Bayscape brief was to provide 115 executive apartments whilst maintaining a parking space for each of them below the podium slab. This requirement meant that the two apartment blocks were built of large transfer beams spanning between strategically placed columns, positioned to maximise car parking.

Economic design through detailed analysis

SCIA Engineer was vital in producing accurate load analysis of the structure which was critical for the design of the large transfer beams. Supporting up to 380 tonnes, the structural engineering software was able to save 30% of reinforcement compared to traditional 1D analysis. The 70m x 65m podium slab required a structural movement joint which was also accurately modelled in SCIA Engineer.

A lot of attention was paid to the distribution of loads at the podium level. Due to the additional stiffness from the transfer beams (ribs) in the model, engineers scrutinised carefully the load distribution around the floor plate in order to determine accurately the foundation loads.

SCIA engineer in all aspects of the design

SCIA Engineer was used to create the full FE model and generate the analysis output used in all aspects of the design.

Among others, the detailed analysis in SCIA Engineer allowed client RVW Consulting Ltd to reduce the amount of the shear connectors at the tender stage.

The client also carried out code dependant deflections assessment to establish long term displacements.
